詳細情報 |
|||
| 製品名: | 柔らかい水分抵抗EPDMラバーロール接着剤の家庭用マシン用 | 材料: | エチレン - プロピレン - ジエンモノム |
|---|---|---|---|
| 細胞構造: | 細胞EPDMフォームと開いた細胞EPDMフォーム | 密度（オープンセル）: | 95-100kg/m³ |
| 密度（閉じたセル）: | 110-150kg/m³ | 特徴: | 高い弾性バッファー、温度抵抗、火炎抵抗 |
| 応用: | 家庭用機械;電子機器用のシール | 色: | 黒 |
| 厚さ: | 1-50mm | 最大サイズ: | 1000*2000*50mm |
| ハイライト: | EPDM rubber roll adhesive back,moisture resistant EPDM foam,household machine rubber seal |
||
製品の説明

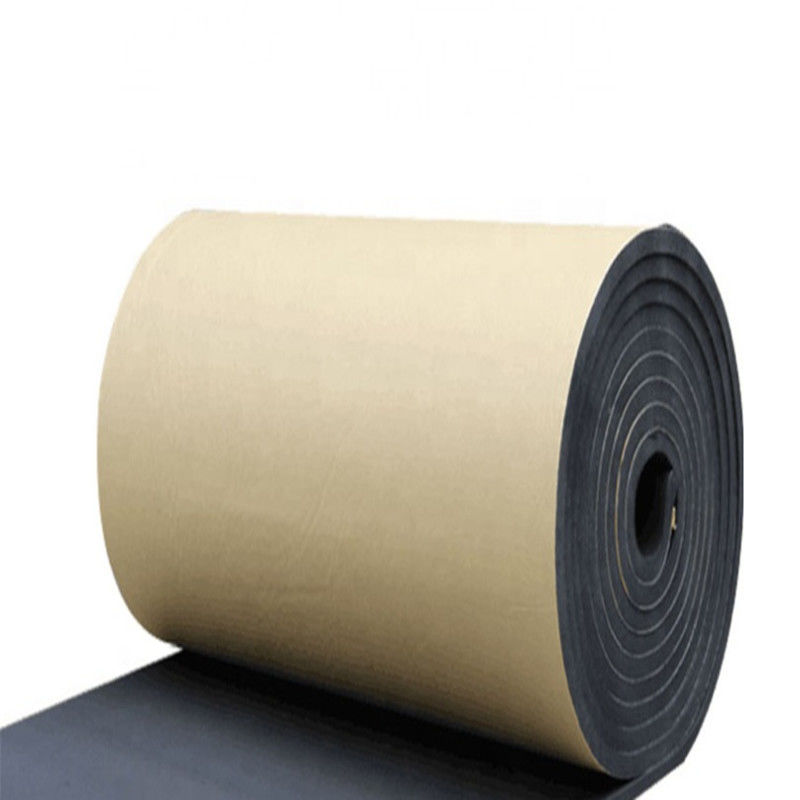

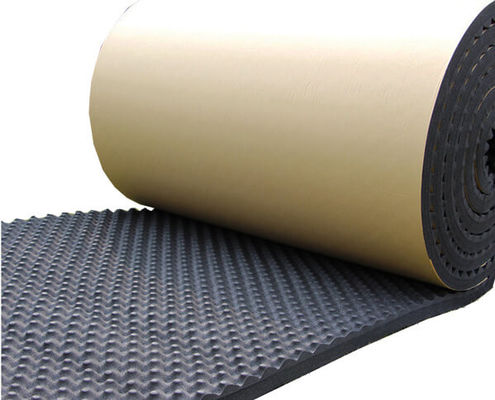

Soft Moisture Resistance EPDM Rubber Roll Adhesive Back For Household Machine
In the electrical industry, EPDM foam boasts excellent insulation properties. Unlike insulation used in wire and cable insulation and in insulating gaskets for electrical equipment, it effectively prevents short circuits and leakage in electrical equipment, enhancing its safety and reliability.
EPDM foam is also used in household goods manufacturing, such as floor mats and furniture cushioning. Its softness and durability make it a common material in the home, providing a comfortable user experience.
In the industrial sector, EPDM foam is often used for sealing, waterproofing, and chemical resistance in pipes, machinery, and other areas. Its weather and chemical resistance enable long-term stable operation in harsh environments, providing reliable support for industrial production.
Overall, EPDM foam, with its excellent performance characteristics, plays an important role in various fields, including automotive, construction, electrical, household, and industrial, providing convenience and reliability for people's lives and work.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q2:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q3:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
