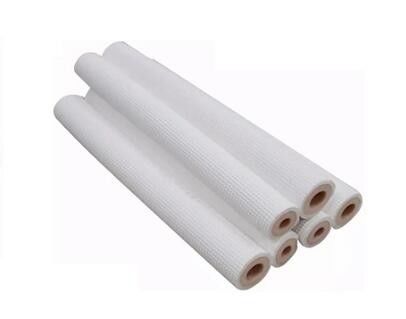

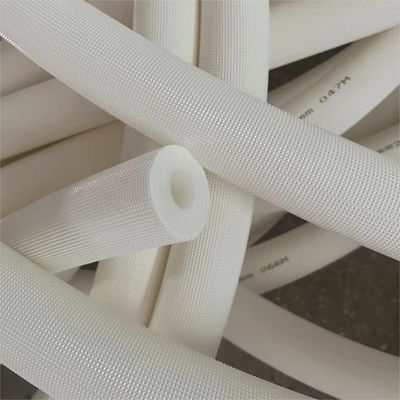

50kg/M³ Crosslinked Polyolefin Insulation Embossed XLPE XPE Foam For Air Conditioning
商品の詳細:
| Place of Origin: | Made In China |
| ブランド名: | EkkoFlex |
| 証明: | BS476,UL94,RoHS,REACH |
お支払配送条件:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| 価格: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
詳細情報 |
|||
| Product name: | 50kg/M³ Crosslinked Polyolefin Insulation Embossed XLPE XPE Foam For Air Conditioning | Structure: | PEF+EPE+XPE foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Color: | white,red ,blue or customized |
| Thermal Conductivity: | 0.027-0.030W/m.K | Flammability: | Class B2 |
| Working Temperature: | -50-+100ºC | Flame Resistance oxygen index: | 18-25.5 |
製品の説明
50kg/M³ Crosslinked Polyolefin Insulation Embossed XLPE XPE Foam For Air Conditioning
50kg/m³ crosslinked polyolefin insulation foam, featuring embossed XLPE/XPE, is ideal for air conditioning systems. The medium-high density ensures robust thermal resistance, minimizing cold air loss and enhancing energy efficiency.
The embossed surface improves grip during installation, fitting tightly around AC components. Its crosslinked structure resists moisture, mold, and flame, meeting safety standards. Suitable for AC ducts and pipes in homes, offices, and commercial spaces, it ensures stable cooling performance with long-term durability.
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:Do you support OEM made?
OEM is warmly welcomed, we can arrange your own color or label, print your OEM package,
and make your own shape according to your drawing.
Q2:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q3: Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again,
like to be remade to be mattress, underlay, furniture filling etc
