Flame Retardant Laminated Xlpe Polyolefin Insulation Foam For HVAC System
商品の詳細:
| Place of Origin: | Made In China |
| ブランド名: | EkkoFlex |
| 証明: | BS476,UL94,RoHS,REACH |
お支払配送条件:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| 価格: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
詳細情報 |
|||
| Product name: | Flame Retardant Laminated Xlpe Polyolefin Insulation Foam For HVAC System | Structure: | PEF+EPE+XPE foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Color: | white,red ,blue or customized |
| Thermal Conductivity: | 0.027-0.030W/m.K | Flammability: | Class B2 |
| Working Temperature: | -50-+100ºC | Flame Resistance oxygen index: | 18-25.5 |
製品の説明

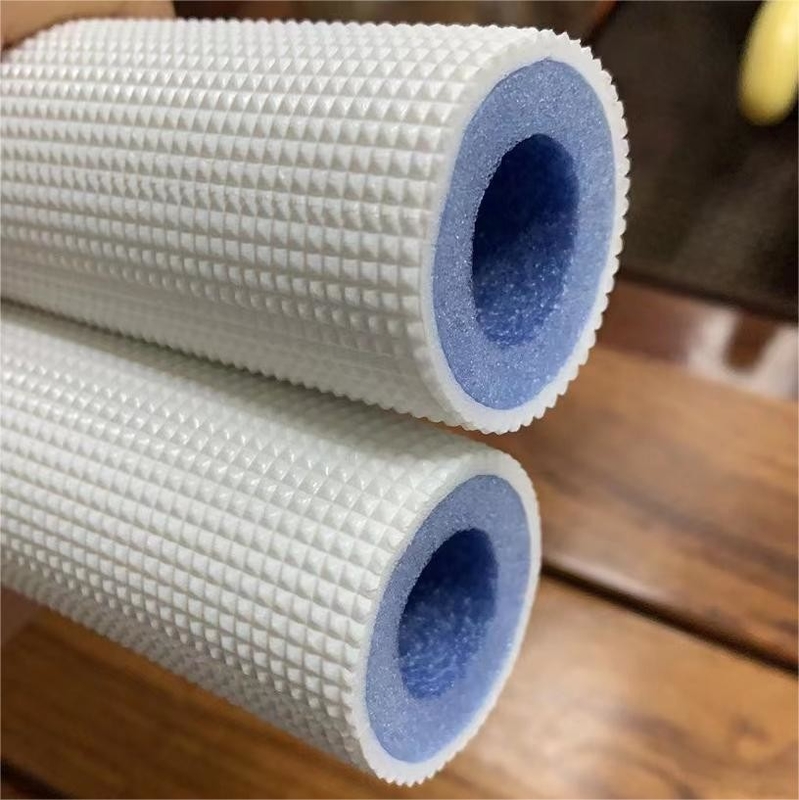

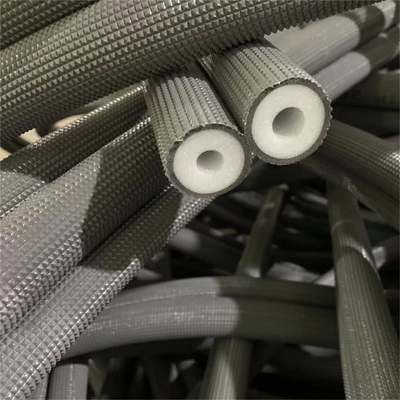

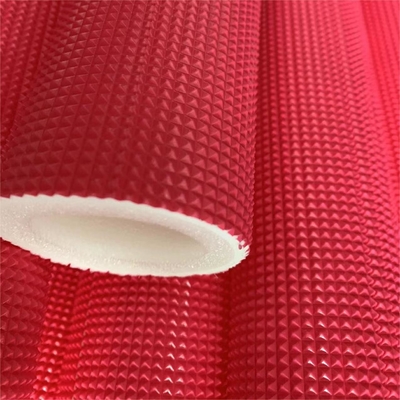

Flame Retardant Laminated Xlpe Polyolefin Insulation Foam For HVAC System
This flame-retardant laminated XLPE polyolefin foam is tailored for HVAC system insulation. Its flame-retardant property meets safety standards, reducing fire risks. The laminated structure enhances durability, with strong resistance to wear and tearing.
Boasting excellent thermal insulation, it minimizes heat transfer, boosting HVAC efficiency. Moisture-resistant and mold-proof, it suits diverse environments. Easy to install on ducts and pipes, it ensures long-term, reliable performance for residential and commercial HVAC systems.
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Specification:
| Thermal Conductivity | 0.027-0.030W/m.K |
| Compression Strength | 160KPa |
| Operating Temperature | -50 - 100℃ |
| Fireproof Performance | B2 |
| Elastic Restoring Rate | 90% |
| Tensile Strength |
180KPa |
| Flame Resistance Oxygen Index | 18-25.5% |
| Density | 20-35kg/m³ |
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam.
The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid
and stable than open cell foam.
Q2:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q3: Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again,
like to be remade to be mattress, underlay, furniture filling etc
