Shock Absorbing Fire Retardant XLPE Polyolefin Insulation Foam For HVAC System
商品の詳細:
| Place of Origin: | Made In China |
| ブランド名: | EkkoFlex |
| 証明: | BS476,UL94,RoHS,REACH |
お支払配送条件:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| 価格: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
詳細情報 |
|||
| Product name: | Shock Absorbing Fire Retardant XLPE Polyolefin Insulation Foam For HVAC System | Structure: | Adhesive+XPE Foam+ Aluminum foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 12/13/15/19/25/30mm |
| Working Temperature: | '-40℃ ~80℃ | Flammability: | B1 grade |
| Water Absorption: | Less than 0.5% | Type: | insulation material |
| Width: | 1000-1500mm | Application: | HVAC ducts, pipes, tanks, and equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
製品の説明
Shock Absorbing Fire Retardant XLPE Polyolefin Insulation Foam For HVAC System
High-density closed-cell XLPE foam sheets excel in building noise control. Their dense structure and closed-cell design effectively block airborne and impact noise transmission.
In buildings, they’re widely used in walls, floors, and ceilings. For wall insulation, they reduce sound penetration between rooms, ideal for apartments and offices. Under flooring, they dampen footsteps and furniture movement, enhancing living comfort. In ceilings, they muffle noise from upper floors or HVAC systems.
Also suitable for studios, theaters, and hotels, where quiet is critical. Easy to install, they integrate well with construction materials, providing long-term, reliable soundproofing to create peaceful indoor environments.

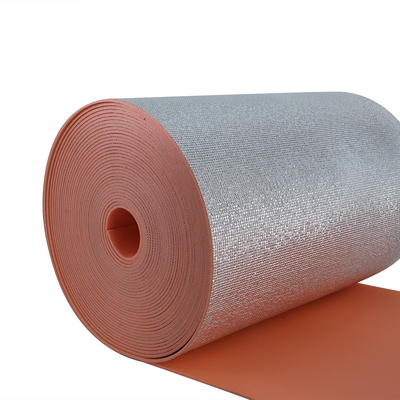

XPE foam coated adhesive and aluminum foil:
|
Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|

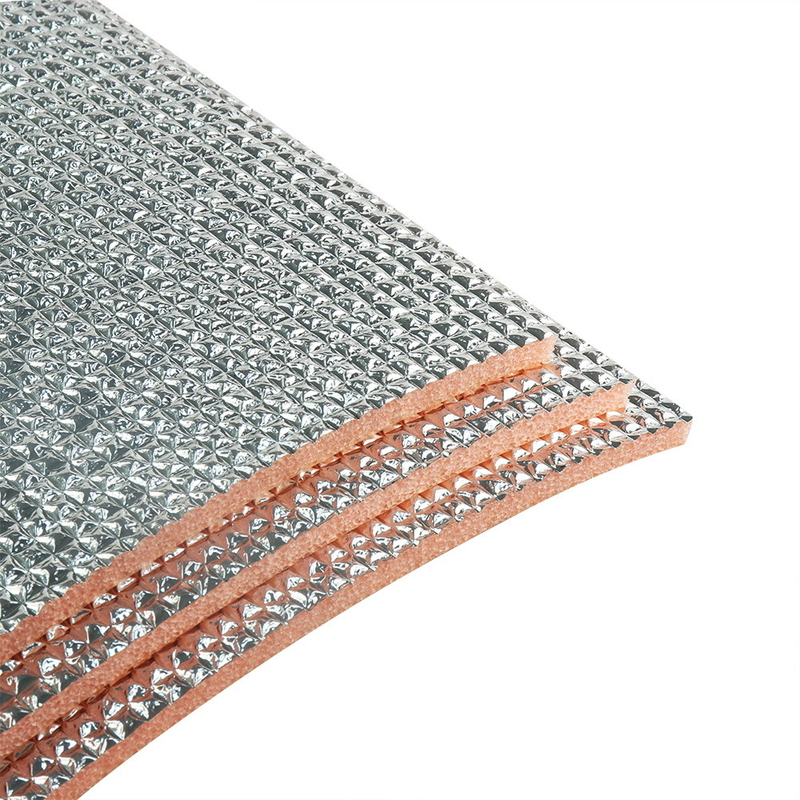

XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.
Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
